LH-4 6-24×50 FFP | Capped Tool-less Turrets | Illum. VPR/VHR | 30mm Tube

Name: LH-4 6-24×50 FFP | Capped Tool-less Turrets | Illum. VPR/VHR | 30mm Tube
Brand: Arken/DNT
SKU: 1496
Availability: InStock

R5900,00

Unit Of Measure

Reticle

Clear

SKU: N/A Category: Optics Brand: Arken/DNT

Guaranteed Safe Checkout

Description :

The LH-4 is an illuminated lightweight hunting optic with fully capped turret assemblies. This optic meets the ARKEN standard for precision and durability to perform in the harshest environments around the world.

Specifications:

Magnification: 6-24x
Objective FOV Diameter: 50 mm
Eye Relief: 3.5 inches
Field of View: 18.55-4.65 ft @ 100 Yards
Tube Size: 30mm
Turret Adjustment: 0.1 MRAD / 0.25 MOA
Reticle Position: First Focal Plane (FFP)

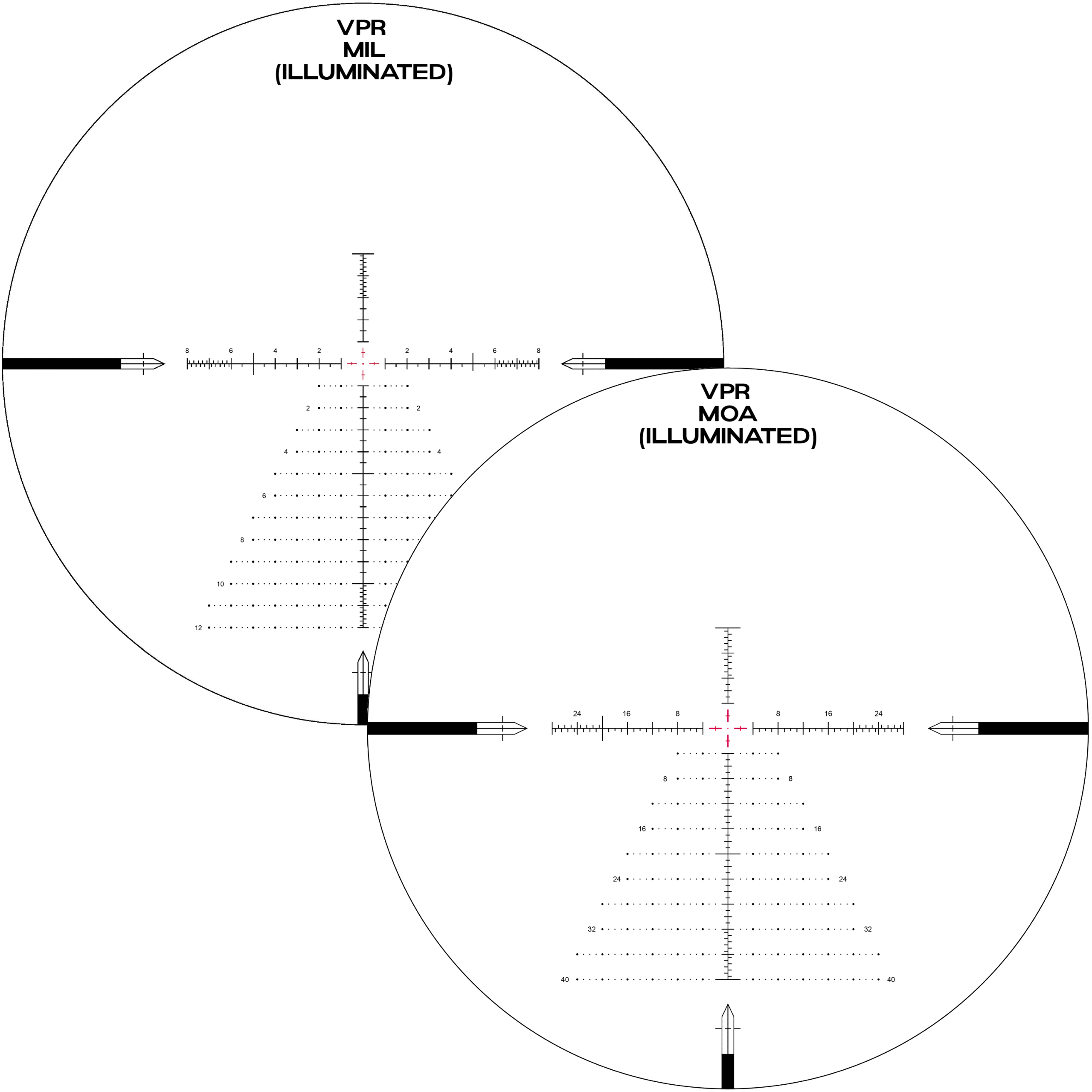

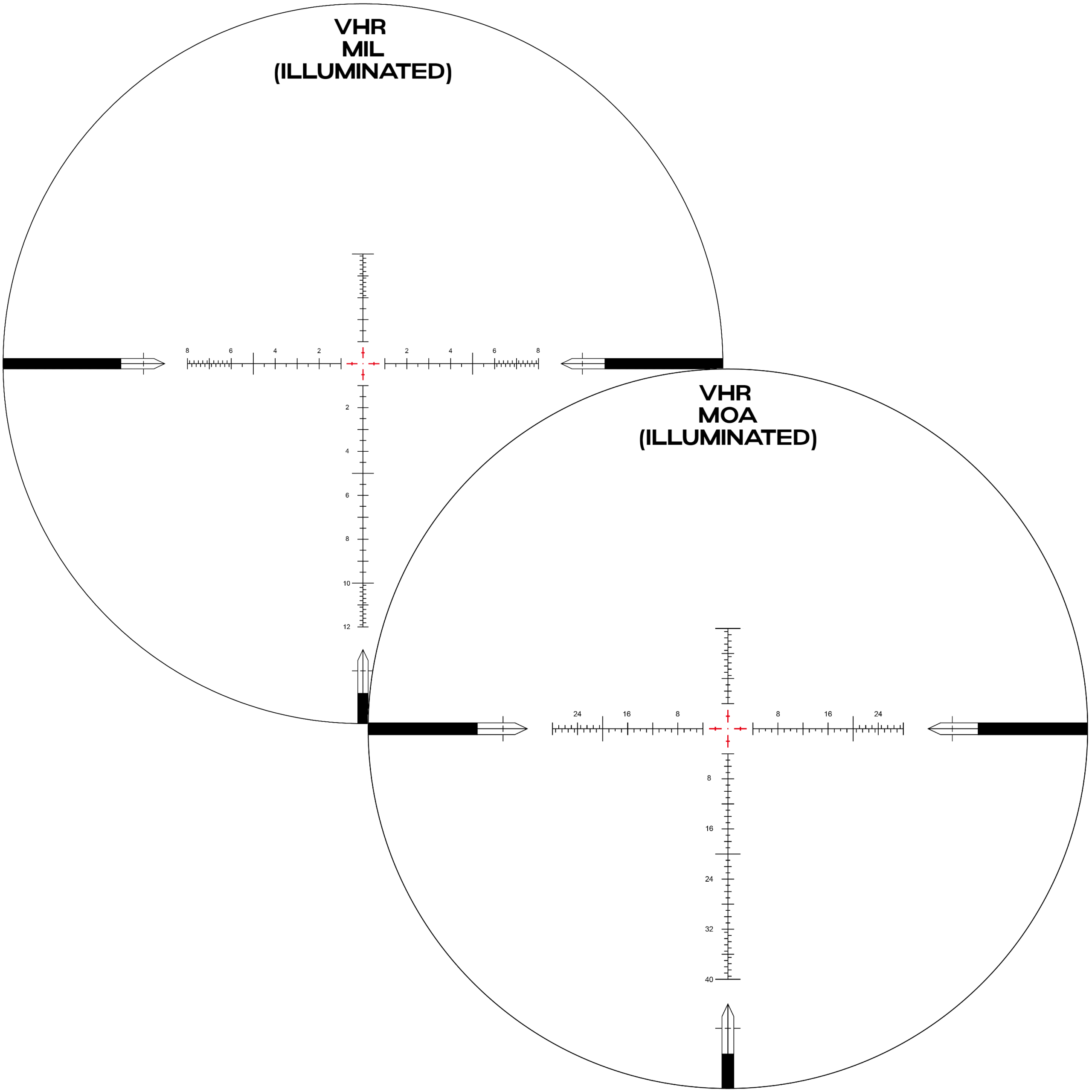

Reticle Details: VHR MIL/VHR MOA/VPR MIL/VPR MOA
Max Elevation Adjustment: 18 MRAD / 60 MOA
Max Windage Adjustment: 14 MRAD / 50 MOA
Elevation Adjustment Per 1x Revolution: 6 MRAD / 15 MOA
Windage Adjustment Per 1x Revolution: 6 MRAD / 15 MOA
Parallax: 10Yards-Infinity
Illuminated Reticle: Red
Length: 13.8 inches
Weight: 22.58 oz
Battery (Not Included): CR2032
Sunshade: Yes
LH-4 Product Manual
